Raimondi LEM 105 Vertical Wet Saw – 41-3/8″ Rip Cut Capacity
The Raimondi LEM 105 Vertical Wet Saw is engineered in Italy to deliver superior performance and precise cuts on large-format tiles and dense materials. Perfect for cutting porcelain panels, natural stones (marble, granite), ceramic, single and double-fired tiles, and even ultra-thin porcelain (3–5mm), this 110V vertical saw offers power, control, and efficiency in a compact footprint.
Key Features & Benefits
- Large Format Ready: Cuts tiles up to 41-3/8″ in length with up to 1-3/16″ depth and as shallow as 1/8″.

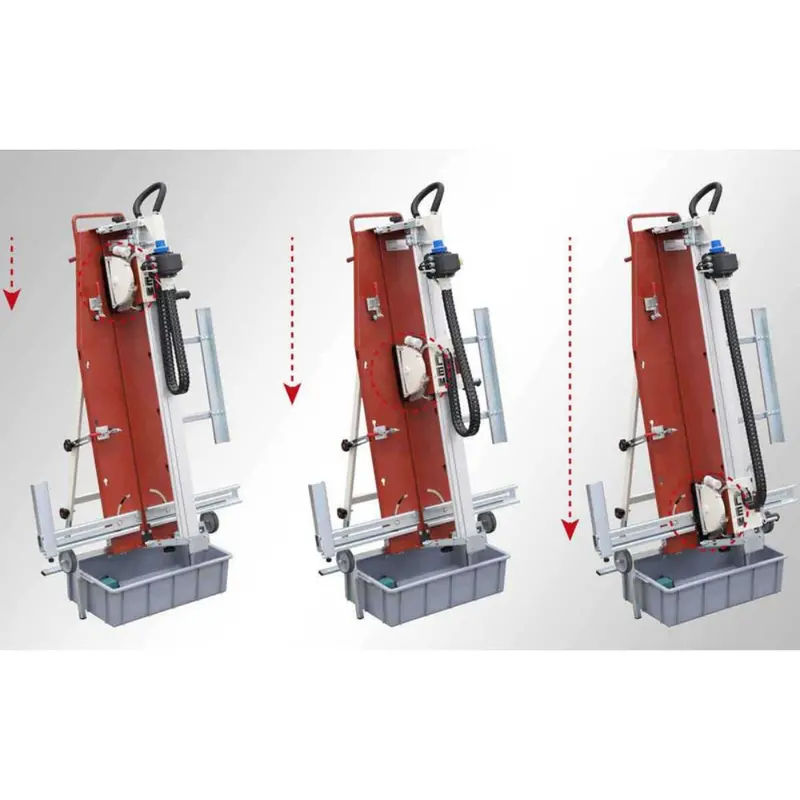

- Automatic Gravity Feed: Adjustable feed system for smooth, consistent vertical cuts.
- Precision Beveling: Motor tilts from 0° to 45° for easy mitered cuts.
- Tile Lock Devices: Magnetic attachments keep tiles secure during out-of-plumb cuts.
- External 14 Gal Water Tank: Easy-to-clean polypropylene tank with heavy-duty pump for efficient blade cooling.
- Compact Transport Mode: Saw folds for easier transport and storage.
Technical Specifications
| Feature | Specification |
|---|---|
| Max Rip Cut | 41-3/8″ (105 cm) |
| Max Cut Depth | 1-3/16″ (40 mm) |
| Min Cut Depth | 1/8″ (3 mm) |
| Blade Size | 8″ (200 mm) |
| Arbor Size | 5/8″ |
| Motor | 1.2 HP, 110V, 2800 RPM, Direct Drive |
| Water Tank | 14 Gal (56 liters), External Polypropylene |
| Weight | 135 lbs |
| Dimensions (Setup) | Approx. 50″ x 27″ x 31″ |
Frequently Asked Questions
- Q: What materials can the LEM 105 cut?
A: It is designed to cut porcelain, ceramic, granite, marble, single and double-fired tiles, and thin porcelain panels. - Q: Does it support bevel cuts?
A: Yes, the motor tilts for 0° to 45° bevel cuts. - Q: Is the water tank easy to clean?
A: Yes, the external 14-gallon polypropylene tank is easy to remove and clean. - Q: Can I transport it easily?
A: The LEM 105 folds down for compact transport with built-in wheels.
